Configuring Addpack Gateway: A Step-by-Step Guide
The Addpack Gateway is a powerful tool for optimizing bandwidth in VoIP systems. Its configuration involves setting up various parameters to ensure seamless communication. Below is a concise guide to configuring the Addpack Gateway effectively.

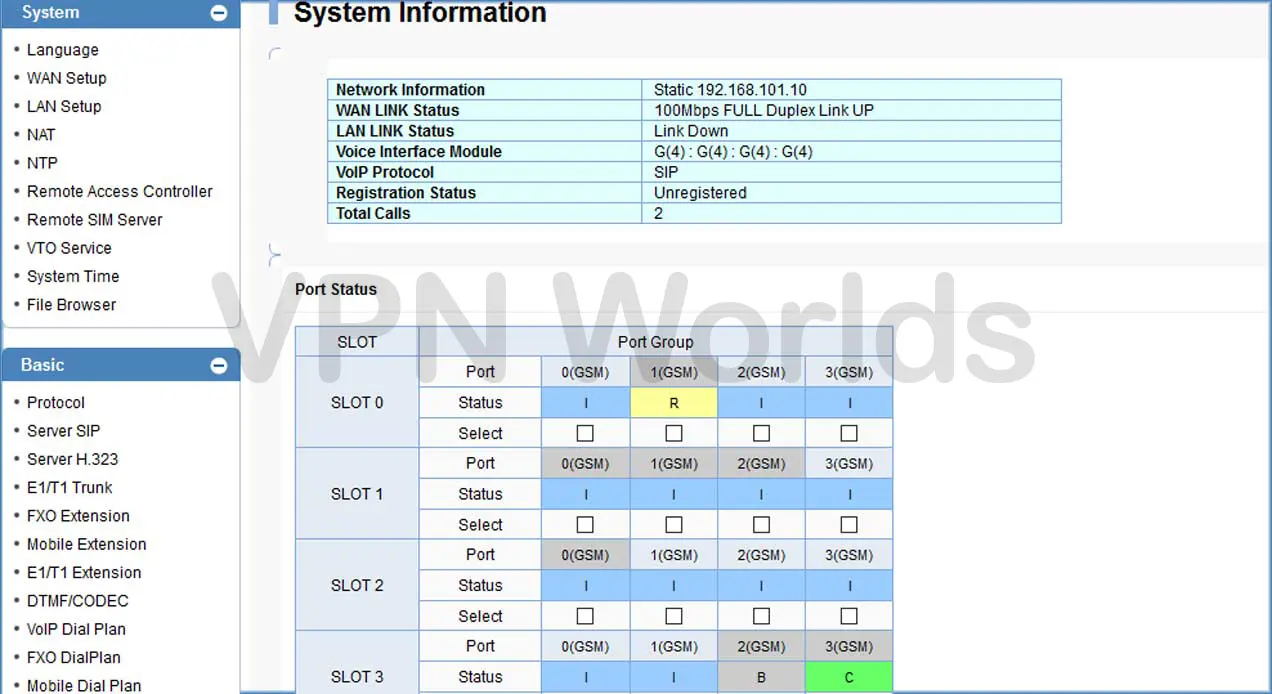

Step 1: Overview of the Addpack Gateway Configuration Page
The first page of the Addpack Gateway Configuration provides a summary of key properties. Important attributes include:
Port Status: Indicates whether ports are active.
Call Connected Status: Displays active calls.
Codec Information: Lists supported codecs.
Call Duration: Tracks the length of ongoing calls.
These features allow administrators to monitor and manage system performance efficiently.

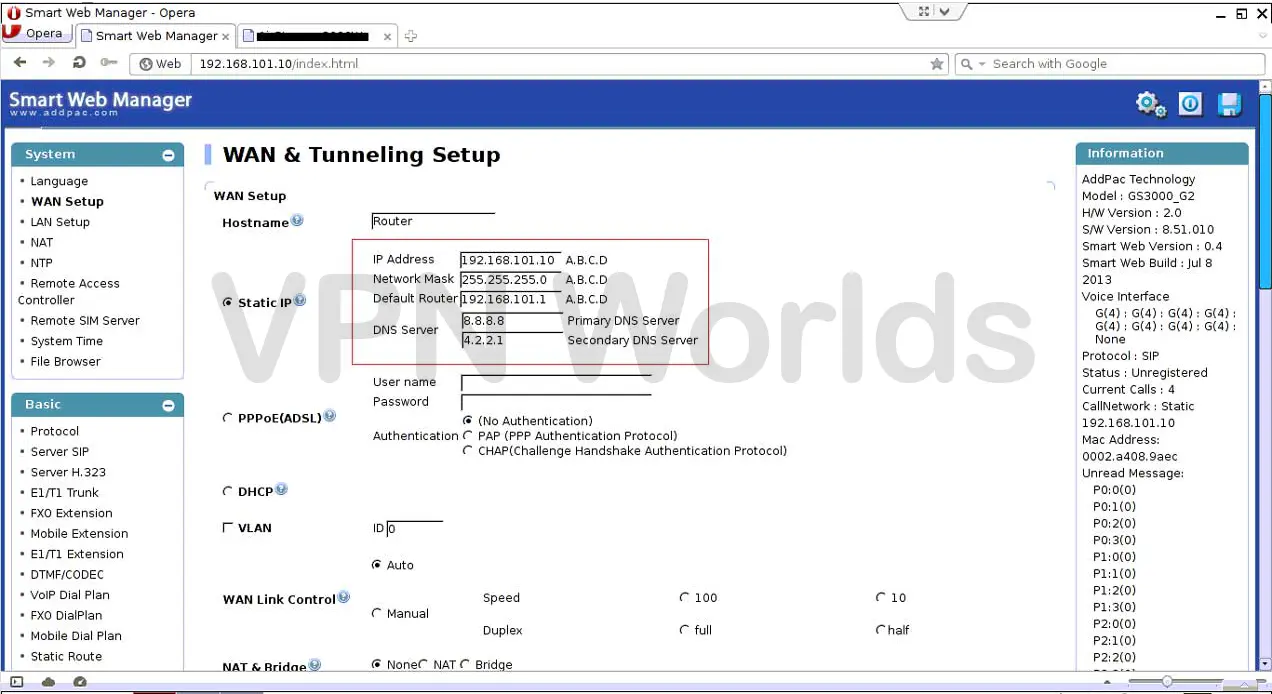

Step 2: Configuring WAN Settings
To configure the WAN settings of the Addpack Gateway, you need the default network credentials:
Default IP Address: 192.168.101.1
Subnet Mask: 255.255.255.0
Follow these steps:
Access the gateway’s web interface using the default IP.
Set a static IP for the gateway to ensure stable connectivity.
This step ensures the gateway operates within the desired network environment.

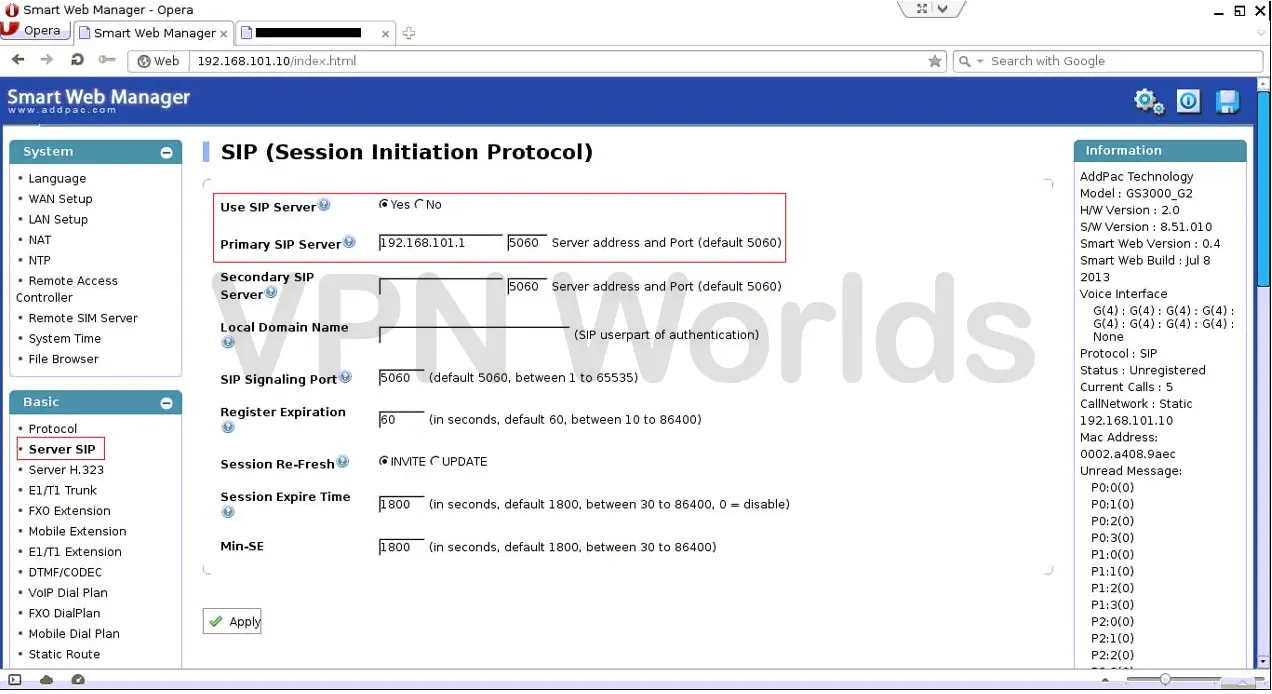

Step 3: Setting Up SIP Protocol Configuration
For seamless communication, configure the SIP protocol on the Addpack Gateway. Use the following guidelines:
Assign the SIP server IP address as the default IP of the bandwidth optimization solution.
This pairing establishes a reliable connection between the gateway and the SIP server.

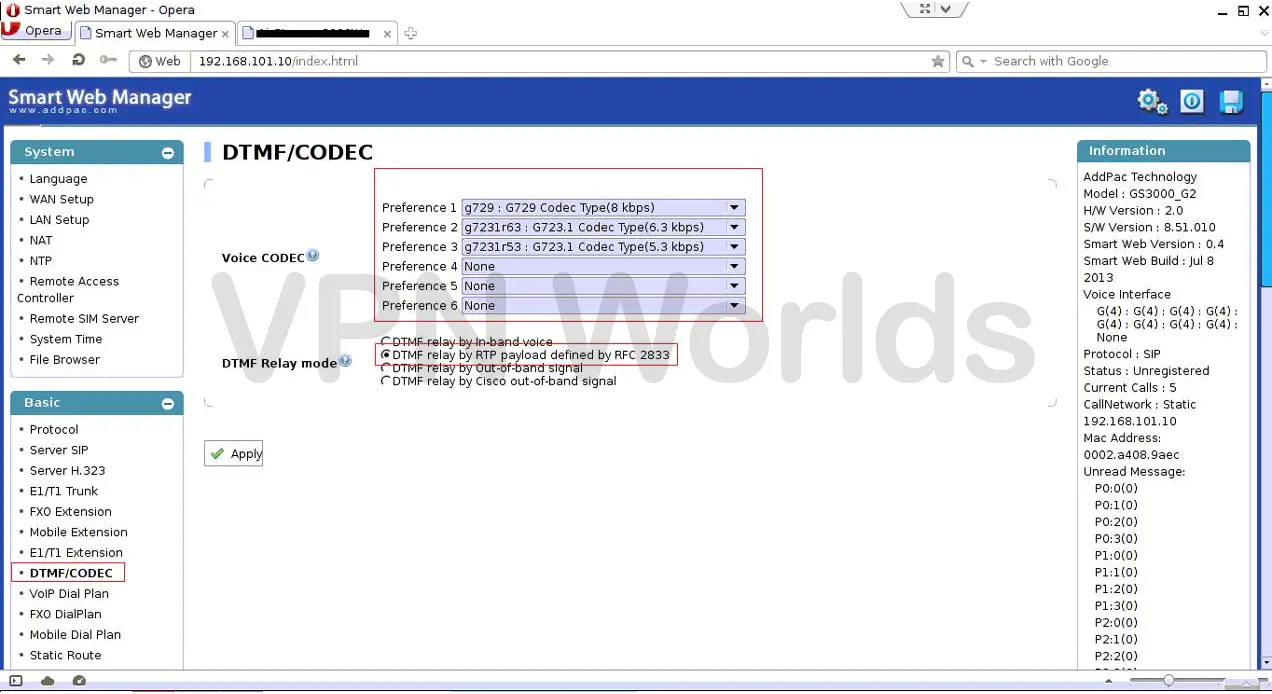

Step 4: Codec Configuration
The Addpack Gateway supports multiple codecs, including:
G729, G723, alaw, ulaw
Key actions during codec configuration:
Set the priority of the codecs based on specific requirements.
Enable DTMF relay mode via RTP payload as defined by RFC 2823.
These settings ensure compatibility and efficient call transmission.

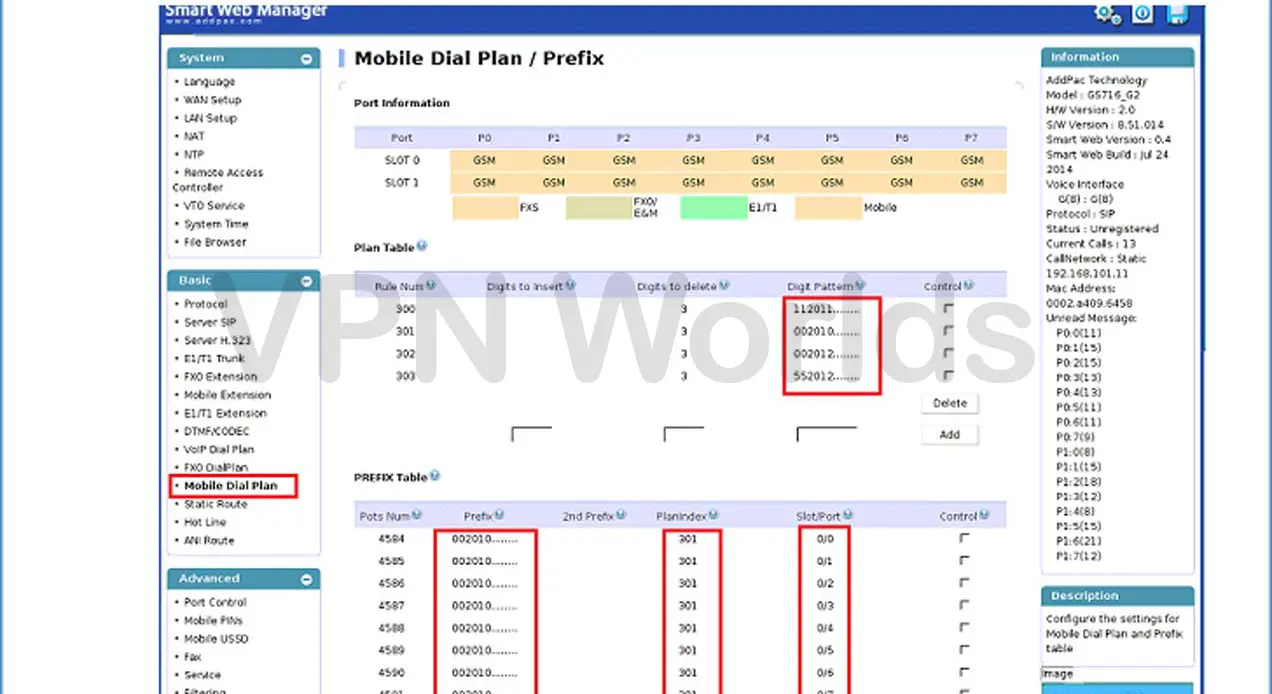

Step 5: Configuring the Mobile Dial Plan
The mobile dial plan configuration is crucial for routing calls correctly. Key tasks include:
Define the digit pattern to specify prefixes for calls routed through the gateway.
Assign the appropriate plane index and configure the slot/port where SIM cards are inserted.
Proper setup of this feature ensures that calls are directed to the correct destinations without errors.
